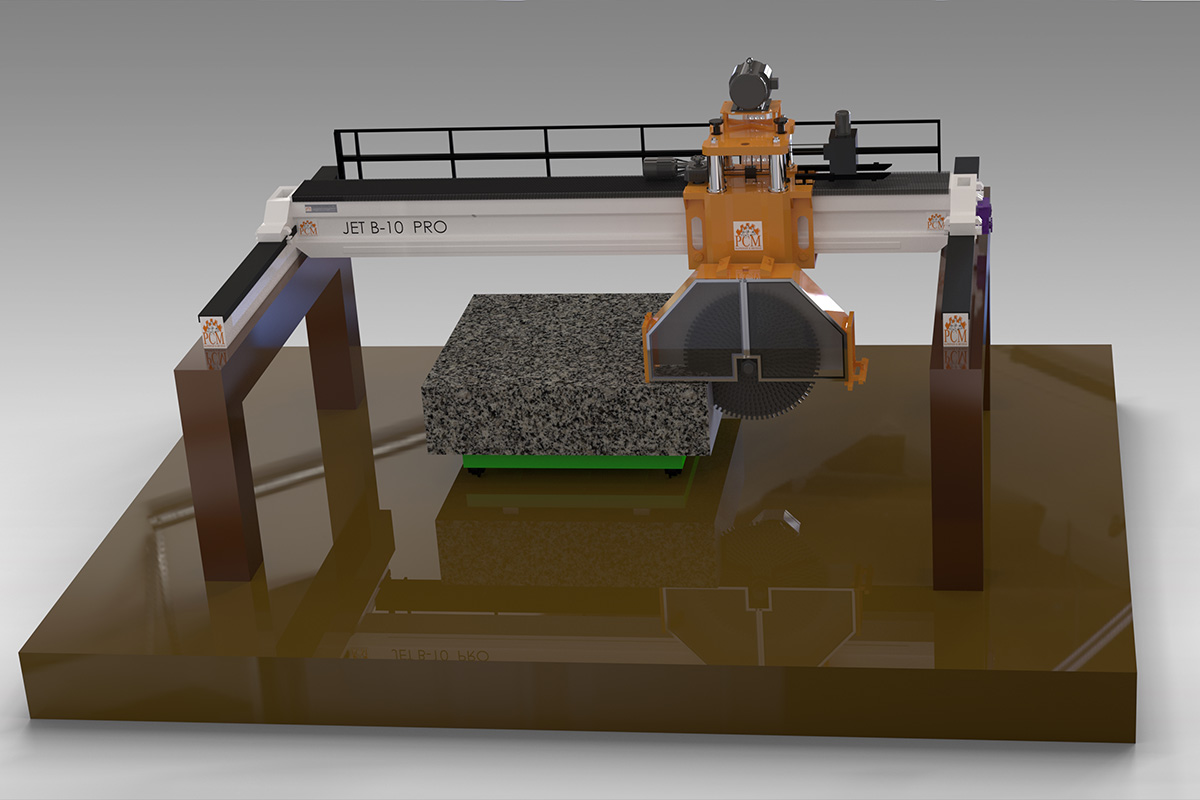

PCM JET B-10/B-14
This cutter is manufactured at our modern production plant by our professionals with high quality materials as per the industry set quality standards. The Supremacy of PCM JET B-10/B-14 was made possible by transitioning the position of up- down arrangement and situating it on the façade instead of the center. This machine is used for cutting the granite stones in an accurate as well as uniform sizes and shapes.
Technical Specifications
| MACHINE | - | PCM JET B-10 | PCM JET B-14 |
|---|---|---|---|
| Blade Diameter (mm) | - | 2300/2400 | 2300/2400 |
| Beam Length (meter) | - | 9 | 9 |
| Suitable Cutting Length (feet) | - | 12 | 12 |
| Cutting Depth (mm/inch) | - | 1000/42 | 1000/42 |
| Max Number Of Blades | - | 10 | 14 |
| Max Horizontal Stroke (X Axis) | - | 4000 | 4000 |
| Slicing Storke (Y Axis) | - | 3650 | 3650 |
| Max Up Down Stroke (Z Axis) | - | 600 | 600 |
| Main Motor Power | - | 75 HP / 1440 RPM | 120 HP / 1440 RPM |
| Trolley Size (Manual) | - | 10'x10' Fabricated By Iron Girder | 10'x10' Fabricated By Iron Girder |
| Panel | - | Fully Automatic Computerized PLC & HMI Control System | Fully Automatic Computerized PLC & HMI Control System |
KEY Features
Sturdy Fabrication Design
to enhance better accuracy and machined to perfection for each components manufacturing in close tolerance.
Imported Linear Guideways
65 MM are used along with heavy duty gearbox and 5HP/1440 RPM ( Brake Motor) for transverse movement (X Axis) for the cutting feed to enhance fast, frictionless and precise movement of the saw.
Heavy Duty End Carriage
for whole bridge / machine movement (Y Axis) Fitted with dual reduction gear box, Forging Wheel for Smooth Run and Double side parallel Rack for Accurate Positioning for slab Thickness.
Hollow Hard Chrome Pipes
for friction less Up – Down movement (Z Axis), and it's control by dual Hydraulic cylinders and there Power Pack, which saves time and increases productivity, as well as gives sturdiness to the cutters, by zero backlash
Precise Rack
and pinion manufactured under close tolerance to attain almost negligible backlash and assembled to perfection for smooth movements of saw.
